Features :
● High speed double-head bendingmachine, with NC control, makes operation and program setting simpler.
● Hydraulic double-head tubebending machines cause the procuction capacity of the enterprise to develop tothe ultimate.
● Also can bend 2 / 4 pieces oftube at the same time.
● Foot pedal for safe start.
● PLC controlling / Mincrocomputer controlling, imported from Japan Mitsubishi.
● Any language can be showed in the touch screen for easy to controlling.
● With water-cool system. Air-cool / oil-cool system as option.
● The head of bending machine is "cast iron".

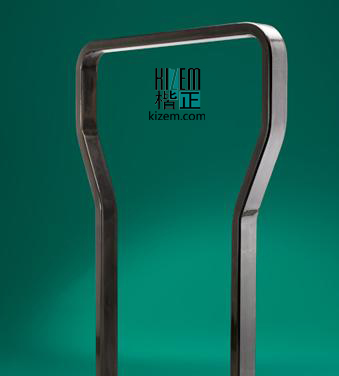

● Can bend round, square, rectangle, profile tube or rod.
● The tube or bar can be mild carbon steel, stainless steel, copper, aluminum and other material.
● The bending precision is ±0.1mm, controlled by encoder for sure the high precision.
● CE, ISO9001 Certification.
● All technical imported from Germany.
Technical data :
Max bending capacity - Ø38×2 mm
Range of bending radius - 35 to 280 mm
The length of two bend - 170 to 2000mm (Can be customed)
Controller - PLC / Mincrocomputer
