Features :

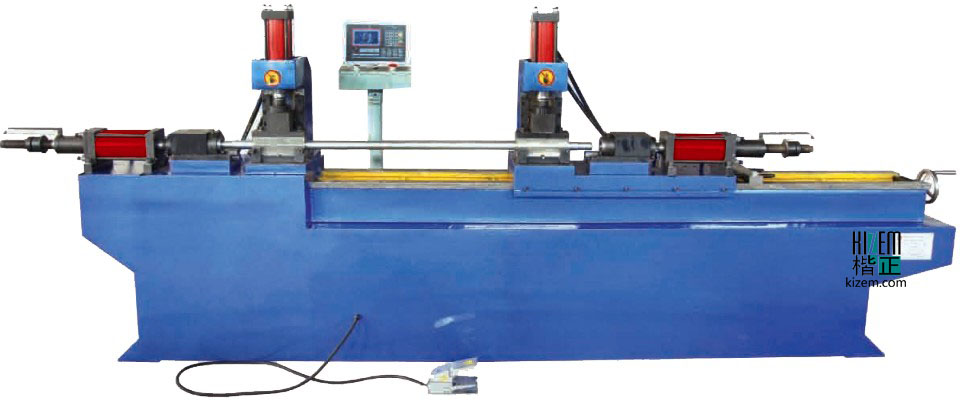

● Double Head End Forming Machine is a kind of high efficiency, full-auto machine. It can form double head of tube at one time.
● It is controlled by oil andelectricity at the same time. It can reduce, enlarge or blunt pipes.

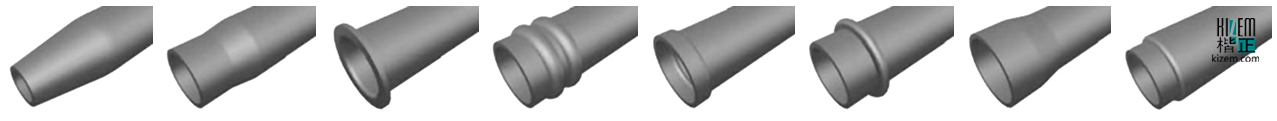

● The processed shapes, includes concave-convex section, long, flat, square, enlargement, slanting, V-shaped,open slot and others.
● According to the customers’choice, the die can be changed.
● The electric parts and hydraulic are imported.
● It adopts PLC control. It issimple to operate, with steady precision, high speed and complete function.
● The head of bending machine is "cast iron".
● Foot pedal for safe start.
● CE, ISO9001 Certification.
● All technical imported from Germany.
Technical data :
Max forming capacity - Ø60×2 mm (SM-60NC)
Max forming capacity - Ø80×2 mm (SM-80NC)
Max forming length - 130 mm (SM-60NC)
Max forming length - 130 mm (SM-80NC)
