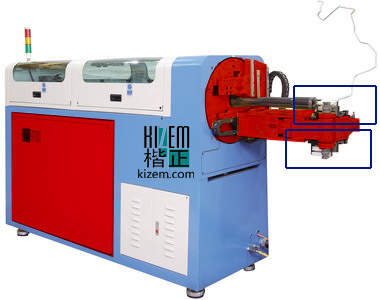

Features :
● Automatic bending tube by electric, rotating tube by electric, feeding tube by electric. Fully automatic type.
● Can right and left direction bend.
● Automatic lubrication.
● 3D suimulation as option.
● PLC controlling / Industry computer controlling, imported from Japan Mitsubishi.
● Touch screen operation panel, can input, store and display bending data and to controll the machine bending.
● Any language can be showed in the touch screen for easy to controlling.
● Anticipated mandrel retraction unit. It adops imported special control system. With high stability.
● With water-cool system. Air-cool / oil-cool system as option.
● The head of bending machine is "cast iron".

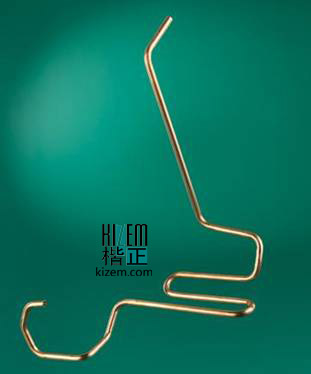

● Can bend round, square, rectangle, profile tube or rod.
● With / without mandrel bending.
● The tube or bar can be mild carbon steel, stainless steel, copper, aluminum and other material.
● The bending precision is ±0.1mm, controlled by encoder for sure the high precision.
● Foot pedal for safe start.
● CE, ISO9001 Certification.
● All technical imported from Germany.
Technical data :
Max bending capacity - Ø18×1.6 mm
Standard feeding length - 1500 mm
Max pushing degree - 190
Controller - PLC / Industry computer
Accuracy （Feeding & Rotating & Bending） - ±0.1
