Features :
● Automatic bending tube by hydraulic, rotating tube by manual, feeding tube by manual.
● Microcomputer controller.
● You can input, store and display bending data and to controll the machine bending.
● Any language can be showed in the touch screen for easy to controlling.
● Anticipated mandrel retraction unit. It adops imported special control system. With high stability.

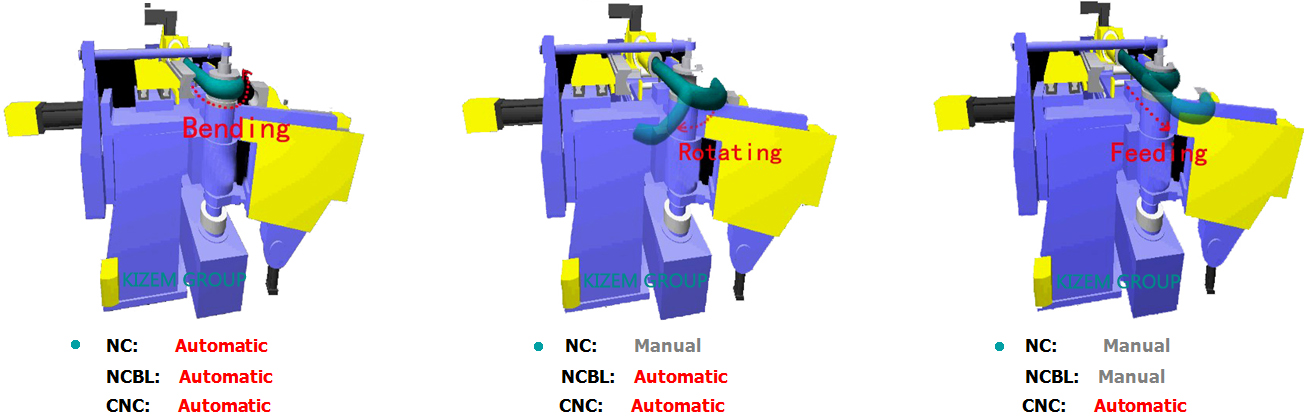

● Automatic bending tube, manual feeding tube and automatic angle rotating.
● With water-cool system.Air-cool system as option.
● The head of bending machine is "cast iron".

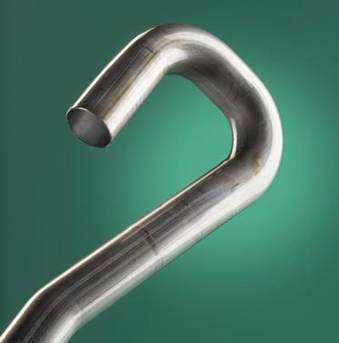

● Can bend round, square, rectangle, profile tube or rod.
● With / without mandrel bending.
● The tube or bar can be mild carbon steel, stainless steel, copper, aluminum and other material.
● The bending precision is ±0.1mm, controlled by encoder for sure the high precision.

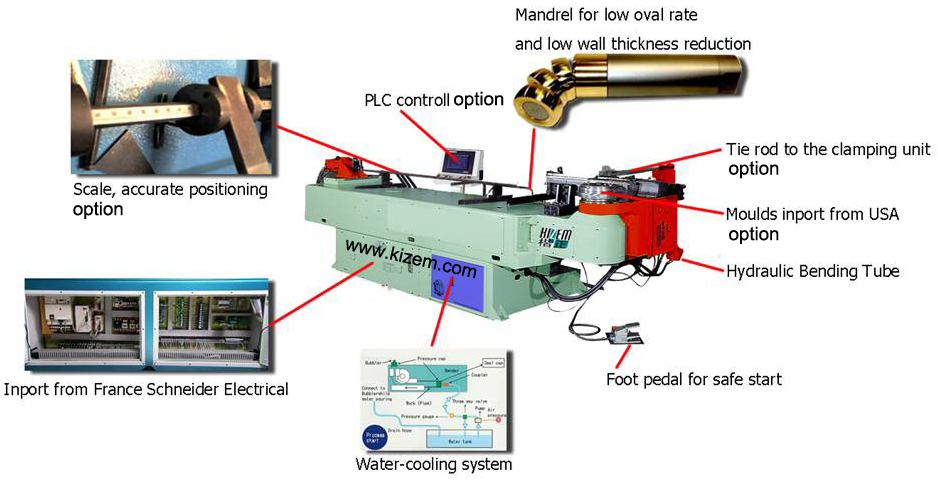

● Foot pedal for safe start.
● CE, ISO9001 Certification.
● All technical imported from Germany.
Technical data :
Max bending capacity - Ø100×8 mm
Standard feeding length - 3600 mm
Max bending degree - 190
Controller - Microcomputer
Accuracy （Feeding & Rotating & Bending） - ±0.1
Motor power - 15 Kw
